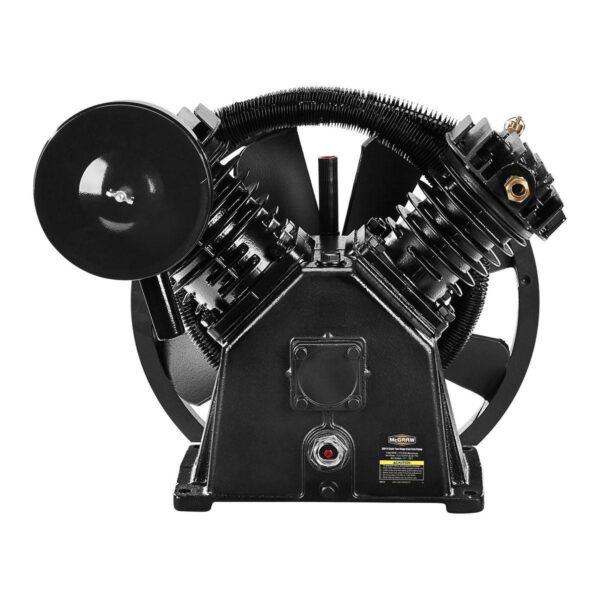

5 HP, 175 PSI 2-Stage V-Style Cast Iron Air Compressor Pump
- Cast iron cylinders for durability and long life
- Automotive style ball bearings and stainless steel reed valves for increased reliability and extended life
- Pleated air filter with metal canister for efficient and durable filtration
- Aluminum head and finned cover for better heat dissipation
- Oil fill plug and drain plug to facilitate oil changes
- Sight glass to quickly gauge oil level
The MCGRAW 175 PSI V-Style Two-Stage Cast Iron Air Compressor Pump is a direct replacement for MCGRAW , CENTRAL PNEUMATIC , DEWALT, PORTER-CABLE, SANBORN, POWERMATE, MAGNA FORCE, INDUSTRIAL AIR, and other air compressors. This pump fits compressors with a 10-1/4 in. x 5-1/4 in. bolt pattern. The pump includes compression fittings to accommodate 3/8 in. or 1/2 in. outlet tubes, plus an extra set of gaskets for future maintenance.
- Brand: MCGRAW
- Model: MG5HP2S
- Flow Rate: 15.0 CFM @ 90 PSI, 14.8 CFM @ 120 PSI,
- Horsepower: 5
- Material: Cast iron, aluminum
- Maximum Pressure: 175 PSI
- Speed (Max.): 1180 RPM (with 5.6 in motor pulley)
- Product Height: 18-3/4 in.
- Product Length: 18 in.
- Product Weight: 74.18 lb.
- Product Width: 14 in.
- Shipping Weight: 80.15 lb.
- Stroke Length: 3.75 in./2.56 in.
- Sound Rating: 86.5 dBA
- Prop 65 Warning: 3
