XtremepowerUS 3CFM Vacuum Pump HVAC Refrigeration AC Manifold Gauge r134 r12 Leak Detector with Carrying Tote

A convenient kit use to diagnose and service a vehicle’s A/C system. This A/C Manifold Gauge Set can be used to test, evacuate and fill automotive or household air conditioning systems. With a carrying tote convenient storage and easy transportation.

SIMPLE BUT POWERFUL – XtremepowerUS 1/4 HP 3 CFM 1-Stage Rotary Air Vacuum Pump is designed to have high efficiency and low noise output with internal high volume cooling fan for extended use

HEAVY DUTY VACUUM PUMP – Die-cast Aluminum Alloy Casing enables the vacuum pump be light and durable at the same time. Equipped with brass fitting tethered safety caps to prevent oil leaks during transportation and handling.

HVAC GAUGE READING – The XtremepowerUS HVAC service gauge set is great for diagnosing and repairing AC systems. Ideal use for R12, R22, R134a and R410a.

EASY OIL CHANGE – The vacuum pump features a simple Oil Fill Port for a clean pour and Oil Drain Plug positioned beneath the oil reservoir to quickly drain when needed. Checking the spillage meter will help to ensure the proper level of oil.

PACKAGE INCLUDED: Multicolored set of three 36 hoses, Manifold Gauge, Vacuum Pump Oil Bottle, Accessories and Storage Bag to keep equipment clean and dust free

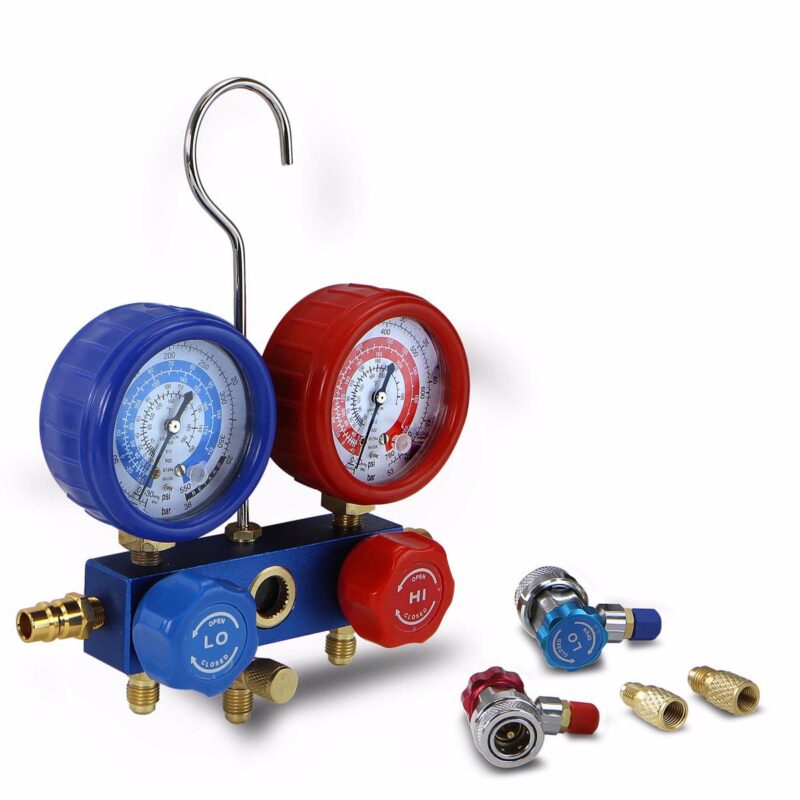

Manifold Gauge Features:

– Heavy duty hook for hanging the manifold gauge in place
– No-flutter gauge design
– Solid Brass connections
– 36″ Color coded charging hose
– Designed to meet 1/4″ Standard SAE requirement for refrigerant permutation
– Ideal for R12, R22, R134a, R410a

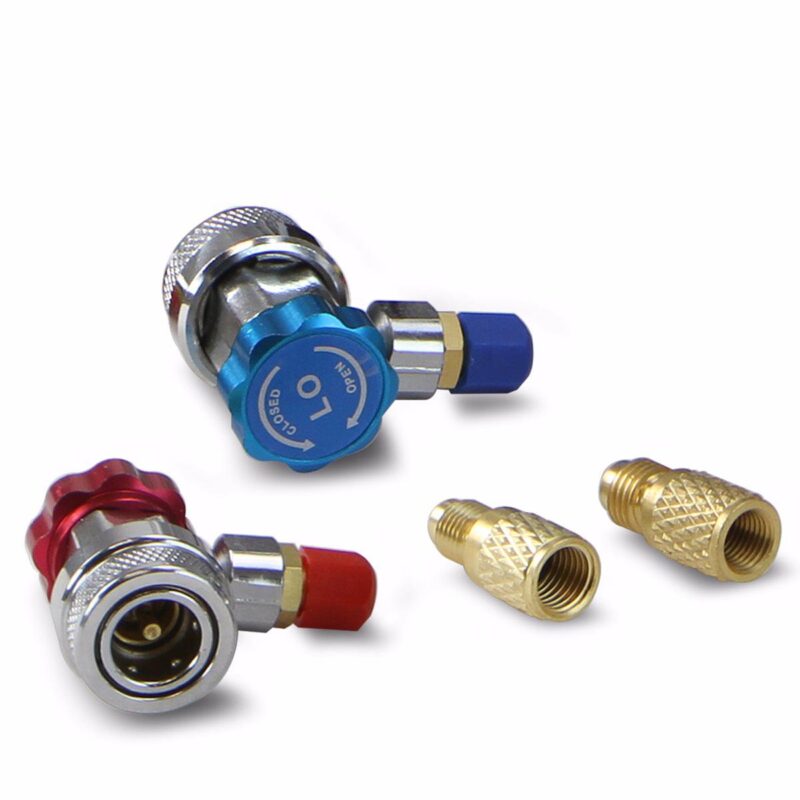

– Quick disconnect couplers for high/low fittings included

Technical Specifications:

– Operating Pressure: 600 PSI
– Burst Pressure: 3000 PSI
– Manifold Blue Gauge (low): 0-150 PSI
– Gauge Reading: R12, R22, R134a, R410a
– Hose Length: 6 Feet

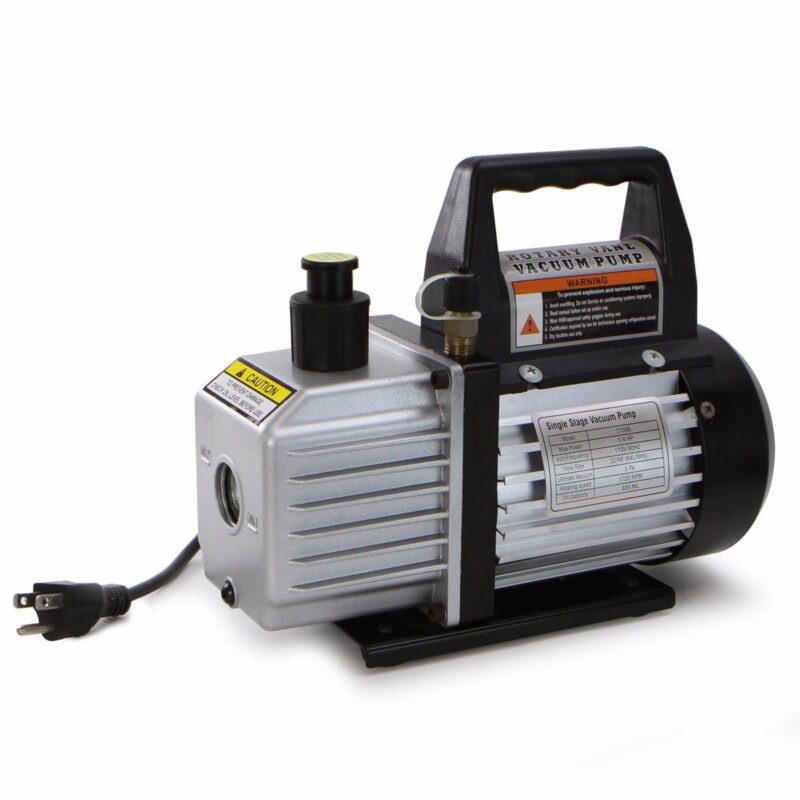

Vacuum Pump Features:

– Easy To See Oil Level Window – Oil viewing windows allows you to monitor oil quality and levels
– Easy To Maintain – Oil drain plug located at bottom of oil reservoir
– Easy To Operate – On/off switch
– Turn On & Go – Easy start & maintenance free
– Efficient Cooling – Built-in high volume cooling fan for extended use
– Portability – Non slip contoured carrying handle
– Safety – Exhaust port with cap

Technical Specifications:

– Free Air Displacement: 3 CFM
– Microns Rating: 75 microns (10pa)
– Power: 1/4HP
– Voltage 110V/60hz
– RPM: 1400
– Ultimate Vacuum: 5pa
– Oil Capacity: 220mL
– Inlet Port: 1/4″ Flare

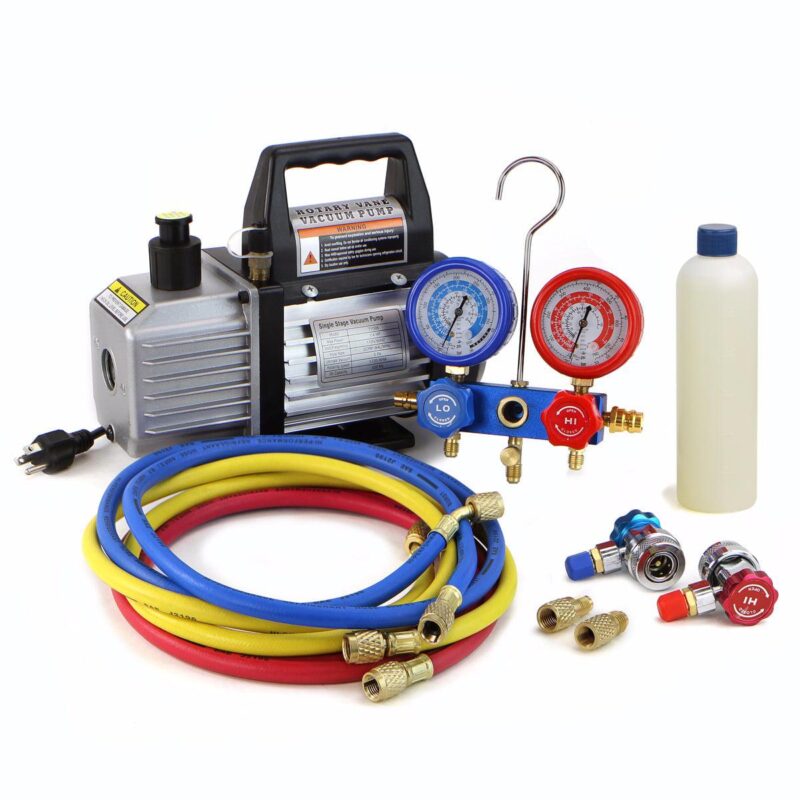

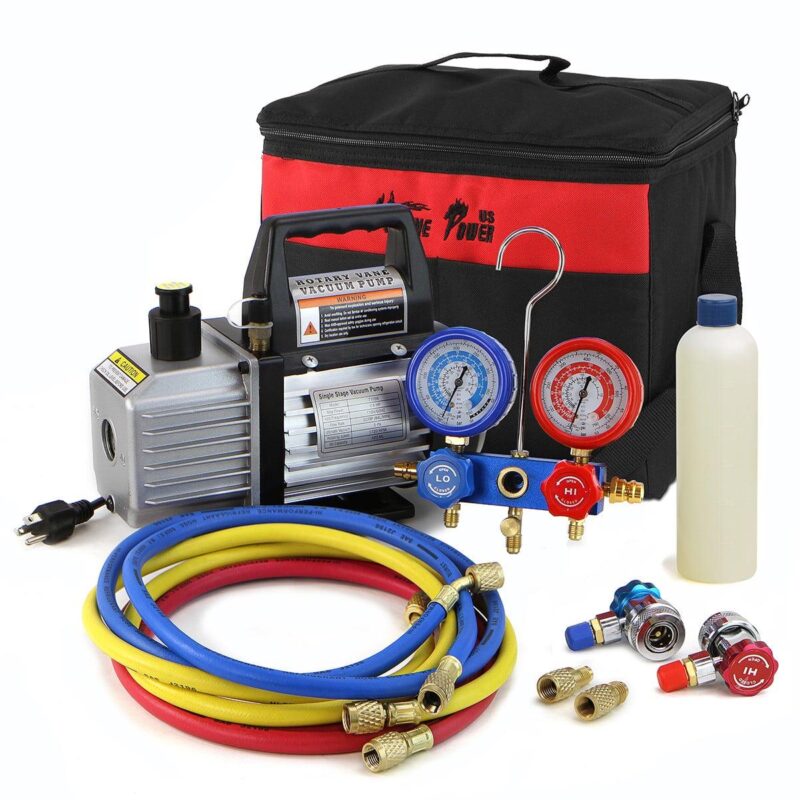

Package Content:

– Manifold Gauge Kit
– Vacuum Pump

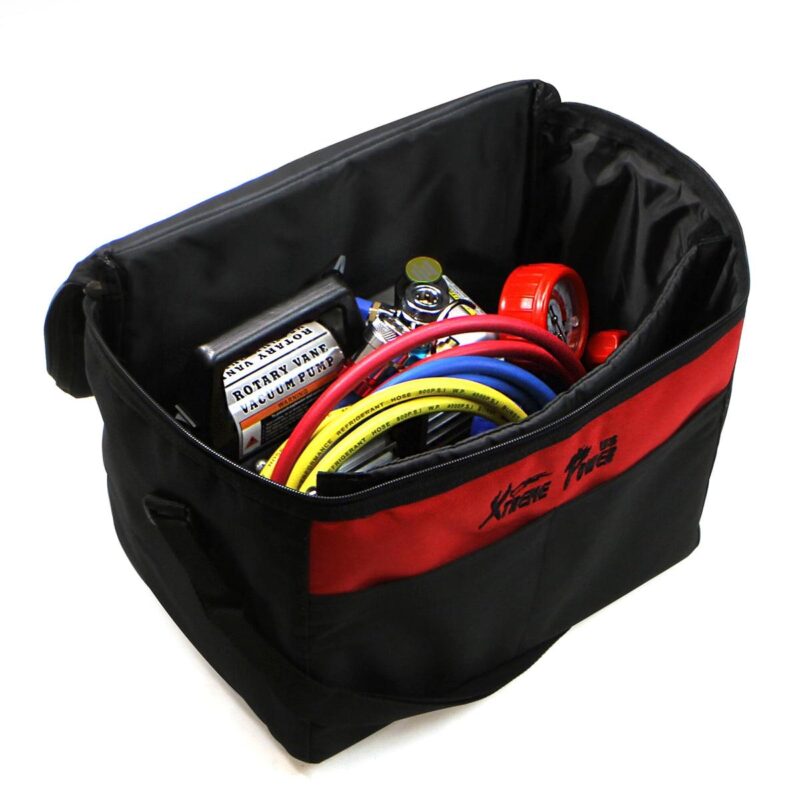

– Carrying Tote

– SIMPLE BUT POWERFUL – XtremepowerUS 1/4 HP 3 CFM 1-Stage Rotary Air Vacuum Pump is designed to have high efficiency and low noise output with internal high volume cooling fan for extended use (Include R-134A automotive air conditioning dispensing valve design with hand operated punch/valve control, connects all R-134a refrigerant cans with 1/4″ Male threads)
– HEAVY DUTY VACUUM PUMP – Die-cast Aluminum Alloy Casing enables the vacuum pump be light and durable at the same time. Equipped with brass fitting tethered safety caps to prevent oil leaks during transportation and handling
– HVAC GAUGE READING – The XtremepowerUS HVAC service gauge set is great for diagnosing and repairing AC systems. Ideal use for R12, R22, R134a and R410a
– EASY OIL CHANGE – The vacuum pump features a simple Oil Fill Port for a clean pour and Oil Drain Plug positioned beneath the oil reservoir to quickly drain when needed. Checking the spillage meter will help to ensure the proper level of oil
– PACKAGE INCLUDED: Multicolored set of three 36 hoses, Manifold Gauge, R134 Can Tap, Vacuum Pump Oil Bottle, Accessories and Storage Bag to keep equipment clean and dust free
